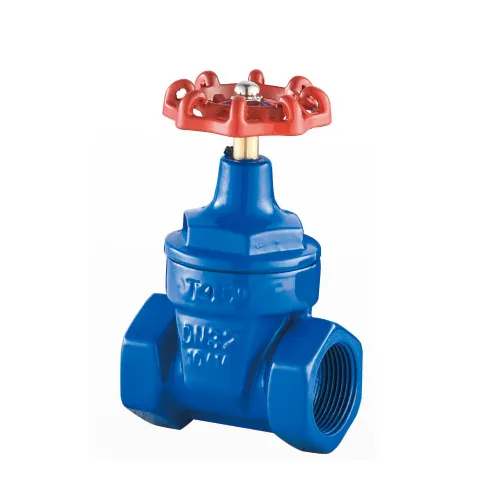

Silk Mouth Soft Seal Gate Valve
This product is an alternative to traditional threaded iron gate valves and copper gate valves.
Characteristics
This product is an alternative to traditional threaded iron gate valves and copper gate valves. It has the following characteristics
1. The bottom part of the traditional gate valve has grooves, which can easily cause debris accumulation and cannot be closed tightly, causing water leakage. The bottom part of the threaded soft seal gate valve is flat without any grooves. The fluid is unobstructed and not easy to accumulate debris
2. The gate valve gate plate is made of all-inclusive food-grade rubber, which is complete, smooth and beautiful. It has the hygienic requirements for drinking water on the bench. The sealing performance is reliable and the product has zero leakage.
3. The body of this throttle valve is coated with sanitary-grade resin to enhance the corrosion resistance of the product, is environmental-friendly, beautiful, has a long service life, and has no secondary pollution to the medium.
4. The outer surface of this throttle valve is sprayed with non-toxic epoxy resin paint, which is beautiful and corrosion-resistant.
Product Overview
A. The gate plate is encapsulated as a whole with good coverage performance and precise dimensions ensure the reliability of sealing;
B. The bottom part of the valve adopts the same flats type as the water pipe, which does not produce debris accumulation;
C. The whole valve is sprayed with non-toxic epoxy resin to prevent corrosion and rust, not only can be used for drinking water systems, but also for sewage systems.
Technical Specifications
Product Components Materials
| Serial number | Main part | Material | |||||
| 1 | Valve cover | QT450 | |||||
| 2 | Stem | Copper rod | |||||
| 3 | Gate | Qt450,nitrile rubber,copper | |||||
| 4 | Valve body | QT450 | |||||
| 5 | Sealing ring | Nitrile rubber | |||||
| 6 | Hand wheel | QT450 | |||||
| 7 | Fasteners | Standard parts | |||||

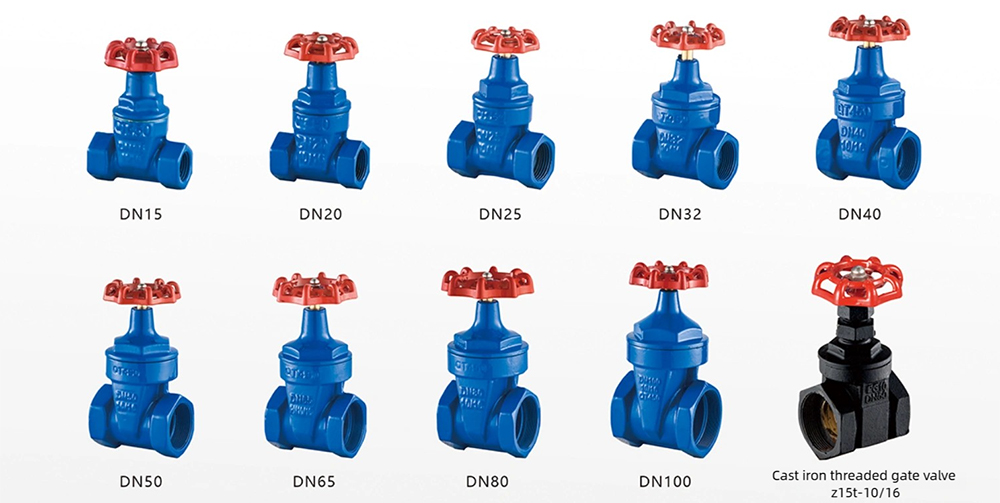

Product Dimensions
| Nominal diameter dn | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | |||||
| L | 65 | 70 | 80 | 98 | 100 | 110 | 130 | 144 | 168 | |||||
