Threaded Mechanical Cross XGQT15S
Product Type: Threaded Mechanical Cross Coupling
Model: XGQT15S
Product Overview
The XGQT15S Threaded Mechanical Cross is a specialized pipe fitting designed to create branch connections in main pipelines within space-constrained environments. Formed by integrating the upper sections of two mechanical tees, this cross coupling enables fluid diversion while minimizing installation footprint through its threaded connection design.
Application Advantages
· Installation Trade-offs:
· While installation speed is slightly slower than grooved coupling systems (due to threaded assembly), it offers notable space-saving benefits in congested layouts.
· Reduces material costs by eliminating the need for separate grooved adapters or additional clamp components.
· Maintenance Flexibility:
· Threaded connections allow for easy disassembly and reconfiguration, simplifying future modifications or repairs without disturbing adjacent piping.
Technical Note
· Material: Typically constructed from malleable iron or ductile iron with optional galvanized finishes for corrosion resistance.
· Pressure Rating: Suitable for working pressures up to [Insert Specific Rating, if Available] (consistent with standard threaded pipe fittings).
This coupling balances space efficiency and cost-effectiveness, making it a strategic choice for projects where compact branching and compatibility with threaded systems are prioritized over ultra-fast installation.
Key Features
Space-Efficient Branching:
· Ideal for applications where traditional grooved couplings may require excessive clearance. The compact threaded design allows for shunt installation in tight layouts (e.g., between walls, in confined mechanical rooms).
· Eliminates the need for additional grooved clamps or adapters, streamlining the pipeline configuration.
Threaded Connection Advantages:
· Provides secure, pressure-tight connections via threaded interfaces, suitable for systems where permanent or semi-permanent branching is required.
· Compatible with standard threaded pipes, valves, or accessories, offering retrofitting flexibility for legacy systems.
Dual-Function Design:
· Acts as a four-way junction, enabling fluid distribution from a main line to two branch lines while maintaining flow integrity.
· Suitable for low-to-medium pressure applications in water supply, HVAC, or industrial piping networks.

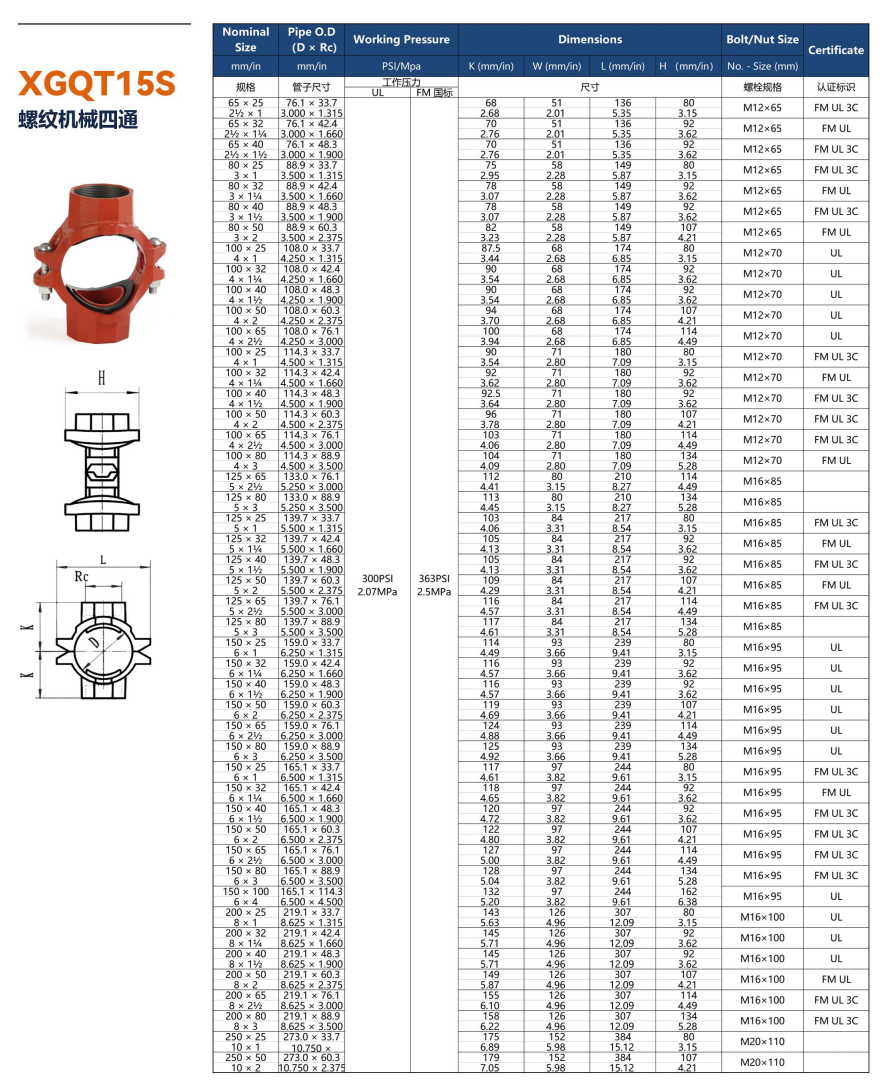

Technical Specifications
