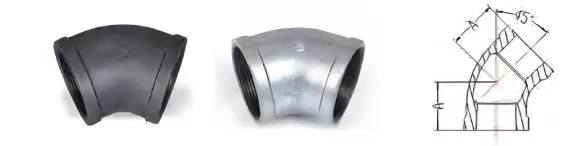

Iron Pipe Fittings 45 Degree Elbow (FIG.120)
Material:Malleable Cast Iron
Size:1/8''-6'' (DN6-DN150)
Thread Type:BSP / NPT
Max Temp:Up to 200°C
Standards:EN10242 / ANSI / ASME B16.3 / DIN2950 / ISO 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standards:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5MPa / 363PSI / CLASS 150 / 25Bar
Product Overview - Iron Pipe Fittings 45 Degree Elbow
45° elbow FIG.120 is a malleable cast iron threaded pipe fitting designed to change the direction of fluid flow smoothly in piping systems. This elbow fitting is suitable for water, oil, gas, and petro‑chemical applications in residential, commercial, and industrial systems.
Design Feature: The elbow is characterized by a 45° bend, used in piping systems requiring directional changes. It enables smooth transition between external and internal threads via threaded connections, allowing flexible pipeline configurations for various applications.
Key Advantages
Low Maintenance: Simplified maintenance and repair reduce operational costs.
Flexible angle: Optimized 45° Angle allows smoother direction change with reduced pressure loss compared to 90° fittings.
Standard thread: Standardized Threads (BSP/NPT) ensure broad compatibility in global piping systems.
Extended Service Life: High Strength Malleable Iron for durability and long service life in demanding environments. Durable construction ensures long-term reliability.
High Temperature Resistance: Withstands elevated temperatures up to 200°C.
Customizable Design: Adaptable to project-specific requirements.
Temperature and pressure resistant: Maintain stable temperatures with reliable thermal insulation. Its exceptional heat and pressure resistance makes it ideal for demanding water, steam, and industrial fluid applications.
Corrosion Protection: Surface coating (galvanization) enhances anti-corrosion capabilities.
Sound Dampening: Reduces fluid flow noise in systems.
Easy Installation: Quick and straightforward setup with standard tools.
Transport Efficiency: Lightweight design facilitates handling and logistics.
Versatile Installation: Suitable for both exposed and concealed pipeline setups.
Typical Applications
→ Fire sprinkler systems
→ Industrial fluid transport
→ Commercial plumbing installations
→ Oil & gas piping
→ HVAC systems
Technical Data
| Maximum Pressure | 25 BAR (363PSI) (2.5MPa) CLASS 150 |
| Maximum Temperature | 200°C (392°F) |
| Tensile Strength | 350MPa |
| Hardness | HB150 (Brinell) |
| Elongation Rate | 10% |
| Suitable Applications | Water, Oil, Gas, Petro-Chemical |
| Material | Malleable Iron |
Types of 45° Elbows
1.45° Long Radius Elbow
Installed between pipes to redirect fluid flow by 45°, minimizing friction and pressure loss compared to 90° elbows. Ideal for systems requiring smooth flow dynamics.
2.45° Short Radius Elbow (SR Elbow)
Compatible with copper, plastic, steel, cast iron, lead, and specialty materials (e.g., stainless steel with rubber clamps). Widely used in chemical processing, food industry, water supply, electronics, horticulture, solar/AC piping, and other industrial applications.
| Code | Size | A | Unit Weight | Packing | ||
| Black Galv. | Carton | |||||
| BSPT | DN | mm | g | g | Pcs/ctn | |
| JZ12008 | 1/4" | 8 | 18 | 46.06 | 47 | 500 |
| JZ12010 | 3/8" | 10 | 20 | 56.84 | 58 | 500 |
| JZ12015 | 1/2" | 15 | 22 | 91.14 | 93 | 400 |
| JZ12020 | 3/4" | 20 | 25 | 131.32 | 134 | 240 |
| JZ12025 | 1" | 25 | 28 | 196.98 | 201 | 140 |
| JZ12032 | 1-1/4" | 32 | 33 | 315.56 | 322 | 96 |
| JZ12040 | 1-1/2" | 40 | 36 | 392 | 400 | 72 |
| JZ12050 | 2" | 50 | 43 | 646.8 | 660 | 36 |
| JZ12065 | 2-1/2" | 65 | 48.5 | 933.94 | 953 | 20 |
| JZ12080 | 3" | 80 | 53.5 | 1274 | 1300 | 12 |
| JZ120100 | 4" | 100 | 64.5 | 2164.82 | 2209 | 6 |
| JZ120150 | 6" | 150 | 129 | 4738.3 | 4835 | 4 |
