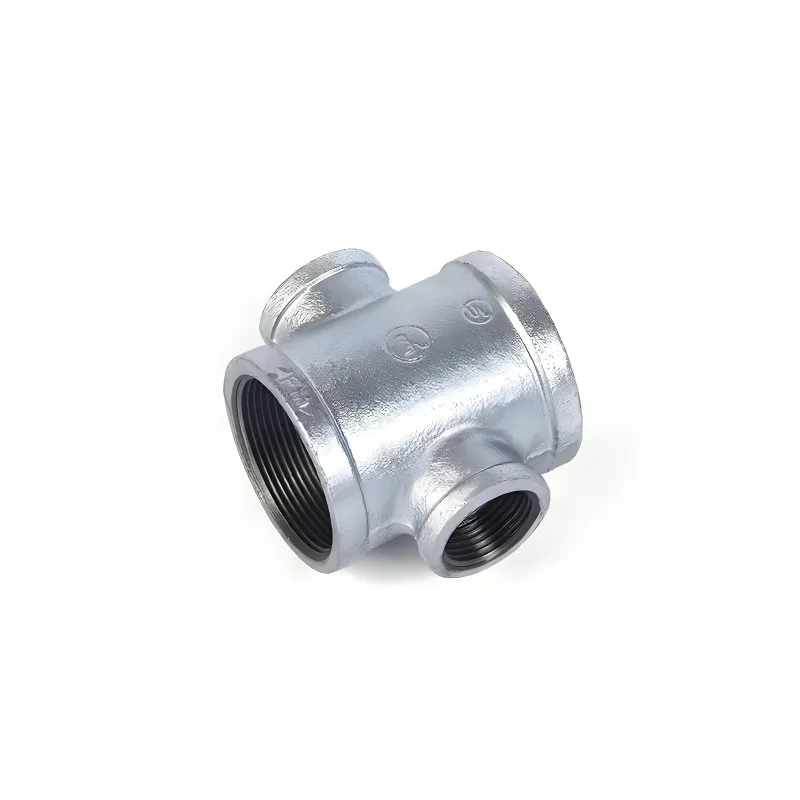

Galvanized Cross Reducer (FIG.180R)
Size: 3/4''–4'' (DN20–DN100)
Standards:EN10242 / ANSI / ASME B16.3 / DIN2950 / ISO 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standards:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5MPa / 363PSI / CLASS 150 / 25Bar
Overview
If you have the opportunity to observe how the 180 reducing four-way pipe is produced, you will be impressed by the product quality and production process.
To meet the requirements of different customers and pipe diameter sizes, the manufacturer produces numerous molds in various specifications to manufacture reducing four-way pipe fittings of different sizes. There are over 40 sets of molds for different dimensions, such as 2-1/2'' reducing four-way pipe fittings, which are matched with 6 different sizes of pipe fittings: 2-1/2''x1/2'', 2-1/2''x3/4'', 2-1/2''x1'', 2-1/2''x1-1/4'', 2-1/2''x1-1/2'', and 2-1/2''x2''.
Therefore, you can purchase the most comprehensive range of reducing four-way pipe fittings, eliminating the need to source different brands for specific sizes. This not only reduces procurement costs but also avoids installation issues caused by incompatible brand specifications.
Technical Data

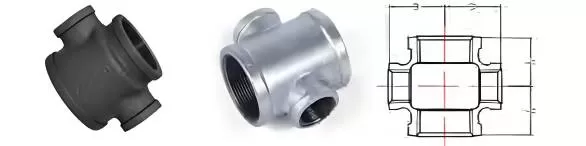

| Maximum Pressure | 25 BAR (363PSI) (2.5MPa) CLASS 150 |
| Maximum Temperature | 200°C (392°F) |
| Tensile Strength | 350MPa |
| Hardness | HB150 (Brinell) |
| Elongation Rate | 10% |
| Suitable Applications | Water, Oil, Gas, Petro-Chemical |
| Material | Malleable Iron |
| Code | Size | A | B | Unit Weight | Packing | |||
| Black Galv. | Carton | |||||||
| BSPT | DN | mm | mm | g | g | Pcs/ctn | ||
| JZ180R2015 | 3/4 "x 1/2" | 20×15 | 29 | 30 | 199 | 203 | 120 | |
| JZ180R2515 | 1"×1/2" | 25×15 | 31 | 33 | 261 | 266 | 96 | |
| JZ180R2520 | 1 "x 3/4" | 25×20 | 34 | 35 | 310 | 316 | 80 | |
| JZ180R3215 | 1-1/4"x1/2" | 32×15 | 34 | 37 | 365 | 372 | 64 | |
| JZ180R3220 | 1-1/4”x3/4" | 32×20 | 36 | 40 | 407 | 415 | 60 | |
| JZ180R3225 | 1-1/4"x1" | 32×25 | 40 | 41 | 460 | 469 | 56 | |
| JZ180R4015 | 1-1/2"×1/2" | 40×15 | 35 | 41 | 414 | 422 | 52 | |
| JZ180R4020 | 1-1/2”x3/4" | 40×20 | 37 | 43 | 473 | 483 | 52 | |
| JZ180R4025 | 1-1/2"x1" | 40×25 | 41 | 45 | 522 | 533 | 42 | |
| JZ180R4032 | 1-1/2”×1-1/4" | 40×32 | 45 | 47 | 646 | 659 | 34 | |
| JZ180R5015 | 2"x1/2" | 50×15 | 37 | 47 | 616 | 629 | 36 | |
| JZ180R5020 | 2"x3/4" | 50×20 | 40 | 49 | 674 | 688 | 36 | |
| JZ180R5025 | 2"x1" | 50×25 | 43 | 51 | 743 | 758 | 28 | |
| JZ180R5032 | 2"x1-1/4" | 50×32 | 47 | 53 | 832 | 849 | 28 | |
| JZ180R5040 | 2"x1-1/2" | 50×40 | 51 | 54 | 901 | 919 | 20 | |
| JZ180R6515 | 2-1/2”x1/2" | 65×15 | 40.5 | 56 | 878 | 896 | 20 | |
| JZ180R6520 | 2-1/2"x3/4" | 65×20 | 43.5 | 57 | 950 | 969 | 20 | |
| JZ180R6525 | 2-1/2"x1" | 65×25 | 47.5 | 59 | 1035 | 1056 | 18 | |
| JZ180R6532 | 2-1/2"x1-1/4" | 65×32 | 51.5 | 61 | 1174 | 1198 | 16 | |
| JZ180R6540 | 2-1/2"x1-1/2" | 65×40 | 54.5 | 61 | 1201 | 1225 | 14 | |
| JZ180R6550 | 2-1/2"×2" | 65×50 | 59.5 | 64 | 1438 | 1467 | 10 | |
| JZ180R8015 | 3"x 1/2" | 80×15 | 42.5 | 64 | 1107 | 1130 | 12 | |
| JZ180R8020 | 3"x3/4" | 80×20 | 45.5 | 65 | 1155 | 1179 | 12 | |
| JZ180R8025 | 3"x 1" | 80×25 | 49.5 | 67 | 1290 | 1316 | 12 | |
| JZ180R8032 | 3 "x 1-1/4" | 80×32 | 54.5 | 69 | 1438 | 1467 | 12 | |
| JZ180R8040 | 3"x 1-1/2" | 80×40 | 57.5 | 71 | 1560 | 1592 | 10 | |
| JZ180R8050 | 3"x2" | 80×50 | 61.5 | 71 | 1695 | 1730 | 10 | |
| JZ180R8065 | 3 "x2-1/2" | 80×65 | 71.5 | 74 | 1981 | 2021 | 8 | |
| JZ180R10015 | 4"x1/2" | 100×15 | 49.5 | 78 | 1826 | 1863 | 6 | |
| JZ180R10020 | 4"x 3/4" | 100×20 | 53.5 | 79 | 1886 | 1924 | 6 | |
| JZ180R10025 | 4"x1" | 100×25 | 56.5 | 82 | 2025 | 2066 | 6 | |
| JZ180R10032 | 4"x 1-1/4" | 100×32 | 60.5 | 85 | 2264 | 2310 | 6 | |
| JZ180R10040 | 4"x1-1/2" | 100×40 | 62.5 | 85 | 2288 | 2335 | 4 | |
| JZ180R10050 | 4"x2" | 100×50 | 68.5 | 86 | 2529 | 2581 | 4 | |
| JZ180R10065 | 4"×2-1/2" | 100×65 | 77.5 | 89 | 2819 | 2877 | 4 | |
| JZ180R10080 | 4"x3" | 100×80 | 82.5 | 90 | 3177 | 3242 | 4 | |
