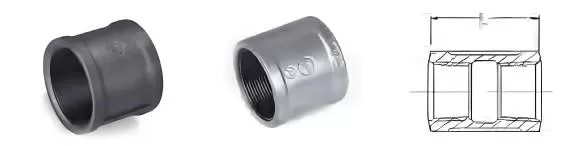

FIG.220 Socket, Part Threaded
Size:1/8''-6'' (DN6-DN150)
Standards:EN10242 / ANSI / ASME B16.3 / DIN2950 / ISO 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standards:EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures:PN25 / 2.5MPa / 363PSI / CLASS 150 / 25Bar
Threaded Socket
Threaded sockets are commonly used to connect two pipes of the same diameter. Also known as couplings, they are constructed from malleable iron, with surfaces available in hot-dip galvanized or cold galvanized finishes. The 220 Socket features a part-threaded design, with disconnected threads at both ends.
Threaded socket branch ends (and other pipe fittings) designed to connect threaded male ends to female threads are specialized in manufacturing for seamless compatibility. For instance, if the pipe features an NPT male thread, the socket should be an NPT female thread to ensure proper fitting.
Threaded socket sizes range from 1/8", 1/4", 3/8", 1/2", 3/4", 1", up to 6" (corresponding to DN6 to DN150), catering to diverse industrial and plumbing applications.
Key Improvements
1. Technical Consistency:
Standardized unit notation (e.g., "MPa" instead of "MPA").
Clarified terminology ("diameter" for precision, "joined" for technical accuracy).
2. Syntax & Flow:
Replaced run-on sentences with concise, professional phrasing (e.g., "Constructed from malleable iron" instead of "Malleable iron material").
Enhanced active voice and logical flow (e.g., "features a part-threaded design" instead of "is part threaded").
3. Keyword Preservation:
All critical parameters (pressures, temperatures, materials) and product-specific terms ("220 Socket," "part threaded," "hot-dip galvanized") remain unchanged.
Product Features
Installation Efficiency: Simplifying pipe installation, couplers and sockets are designed for easy sliding over pipes without additional equipment. They can be cemented, welded, or mechanically joined to form a pressure-tight seal.
Design Flexibility:Flexible threaded cast iron couplings can be fully bored or incompletely bored. This design is critical for the fitting, as it primarily interfaces with lock nuts and squeegees, providing a detachable connection during pipeline installation.
Material Excellence:Malleable cast iron pipe fittings come in a variety of sizes and configurations, providing contractors and engineers with the versatility required for efficient and economical systems. These pipe fittings can handle fluids and gases and are ideal choices for various applications. Suitable for various connections, including threaded systems.
Flexibility: Manufactured from malleable cast iron, these fittings offer high-performance durability, reliability, and extended service life.
Applications of socket-threaded systems
→ Building water supply and drainage systems
→ Industrial liquid and gas transportation
→ Petrochemical and HVAC systems
→ Municipal and agricultural irrigation pipelines
Technical Specifications
| Maximum Pressure | 25 BAR (363PSI) (2.5MPa) CLASS 150 |
| Maximum Temperature | 200°C (392°F) |
| Tensile Strength | 350MPa |
| Hardness | HB150 (Brinell) |
| Elongation Rate | 10% |
| Suitable Applications | Water, Oil, Gas, Petro-Chemical |
| Material | Malleable Iron |
| Code | Size | L | Unit Weight | Packing | ||
| Black | Galv. | Carton | ||||
| BSPT | DN | mm | g | g | pcs/ctn | |
| JZ22006 | 1/8" | 6 | 23.5 | / | / | / |
| JZ22008 | 1/4" | 8 | 26 | 36.26 | 37 | 800 |
| JZ22010 | 3/8" | 10 | 29 | 46.06 | 47 | 700 |
| JZ22015 | 1/2" | 15 | 35 | 80.36 | 82 | 450 |
| JZ22020 | 3/4" | 20 | 38 | 113.68 | 116 | 300 |
| JZ22025 | 1" | 25 | 44 | 176.4 | 180 | 180 |
| JZ22032 | 1-1/4" | 32 | 49 | 264.6 | 270 | 120 |
| JZ22040 | 1-1/2" | 40 | 53 | 319.48 | 326 | 72 |
| JZ22050 | 2" | 50 | 63 | 543.9 | 555 | 48 |
| JZ22065 | 2-1/2" | 65 | 72 | 825.16 | 842 | 32 |
| JZ22080 | 3" | 80 | 77.5 | 1003.52 | 1024 | 24 |
| JZ220100 | 4" | 100 | 91.5 | 1702.26 | 1737 | 10 |
| JZ220150 | 6" | 150 | 118 | 3776.92 | 3854 | 4 |
