Anti-Collision Ground Fire Hydrant
The Anti-Collision Ground Fire Hydrant body is manufactured with high-strength ductile iron and anti-corrosion coating, ensuring stable performance under long-term buried or semi-buried working conditions. Its structure allows quick activation during firefighting operations while reducing maintenance frequency.
Material: Ductile Iron / Cast Iron
Size Range: DN80 – DN200
Pressure Rating: PN10 / PN16
Connection Type: Flanged / Threaded
Standard: EN 14384 / BS 750
Product Features
Anti-Collision Structural Design
The buried or low-profile structure significantly reduces exposure to vehicle impact, making it suitable for road-side and parking area installations.
High Strength Ductile Iron Body
Manufactured using ductile iron to ensure excellent mechanical strength, pressure resistance, and long service life in demanding environments.
Corrosion-Resistant Coating System
Epoxy coating or bitumen protection layer improves resistance against soil corrosion and moisture exposure in underground applications.
Fast Emergency Water Access
Designed for rapid activation, ensuring immediate water supply during firefighting operations with minimal operational steps.
Modular Maintenance Design
Key components can be disassembled and replaced independently, reducing maintenance time and lifecycle cost.
Compatible with Multiple Standards
Supports international fire protection standards including EN and BS series, suitable for global engineering projects.
Fire Hydrant Type Comparison
| Item | Anti-Collision Ground Hydrant | Traditional Above-Ground Hydrant |
|---|---|---|
| Structure | Buried / Low-profile | Exposed vertical structure |
| Installation | More complex underground setup | Easier surface installation |
| Maintenance | Moderate, modular access | Easier visual inspection |
| Application | Urban roads, parking areas | Industrial yards, open spaces |
| Cost | Higher initial cost, lower risk cost | Lower initial cost, higher damage risk |
Why Choose KOXY
Over 15 years manufacturing experience in fire protection and piping systems
Strict quality control from raw material to final hydrostatic testing
OEM & ODM customization for global engineering projects
Complete technical documentation for installation and compliance
Proven supply capability for municipal and industrial infrastructure projects
Stable production capacity ensuring short lead times for bulk orders
Technical Specifications
| Specification model | Nominal diameter dn/mm | Nominal pressure pn/mpa | Water inlet diameter (mm) | ||||||

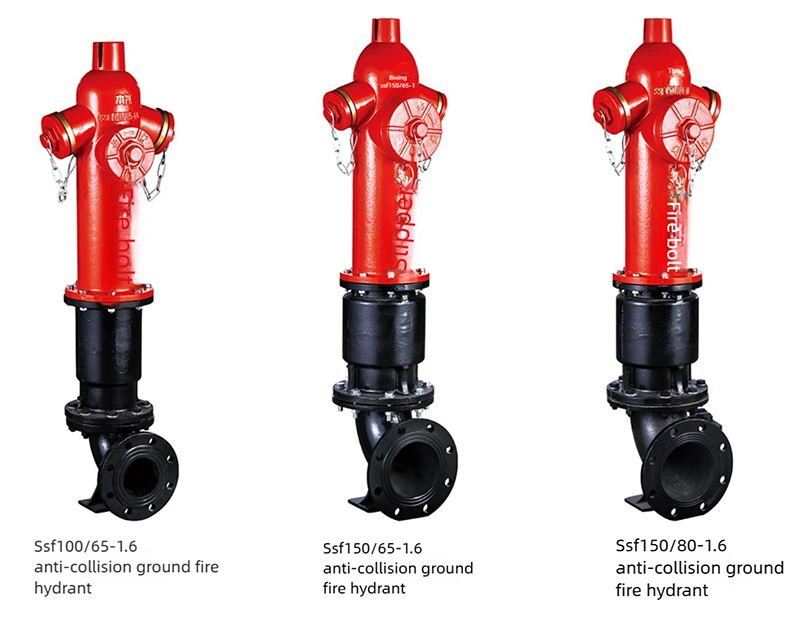

| SS100/65-1.6 SA100/65-1.6 SSF100/65-1.6 SSFT100/65-1.6 | 100 | 1.6 | 100 | ||||||
| SS150/80-1.6 SA150/80-1.6 SSF150/80-1.6 SSFT150/80-1.6 | 150 | 1.6 | 150 | ||||||
| Voltage regulating range | Water outlet | Opening height (mm) | Flange connection size | Applicable medium | |||||
| Caliber | Interface | D | D1 | n-d | |||||
| 0.3~1.0MPa | 100 | 2-KWS65 | 50 | 220 | 180 | 8-Φ17.5 | Water foam mixture | ||
| 150 | 2-KWS80 | 55 | 285 | 240 | 8-Φ22 | ||||
