A hydraulic pressure reducing valve is a normally open pressure-control valve that maintains a lower, controlled pressure in one branch of a hydraulic circuit while the main system continues operating at a higher pressure. As downstream pressure reaches the valve setting, the valve restricts inlet flow to hold the secondary circuit near the required pressure.
This allows one hydraulic power source to operate functions with different pressure requirements. For example, a machine may use high system pressure for lifting while supplying lower pressure to a clamp, brake, pilot line or positioning cylinder.
A hydraulic pressure reducing valve controls downstream or secondary-circuit pressure.
It is usually open when downstream pressure is below its setting.
The valve throttles as downstream pressure rises to the preset level.
Direct-acting valves suit relatively simple, lower-flow applications requiring quick response.
Pilot-operated valves generally provide more stable control at higher flow rates.
A reducing valve and a pressure relief valve perform different jobs and are not interchangeable.
Fluid type, pressure range, flow, drainage, contamination control and seal compatibility must all be confirmed before selection.

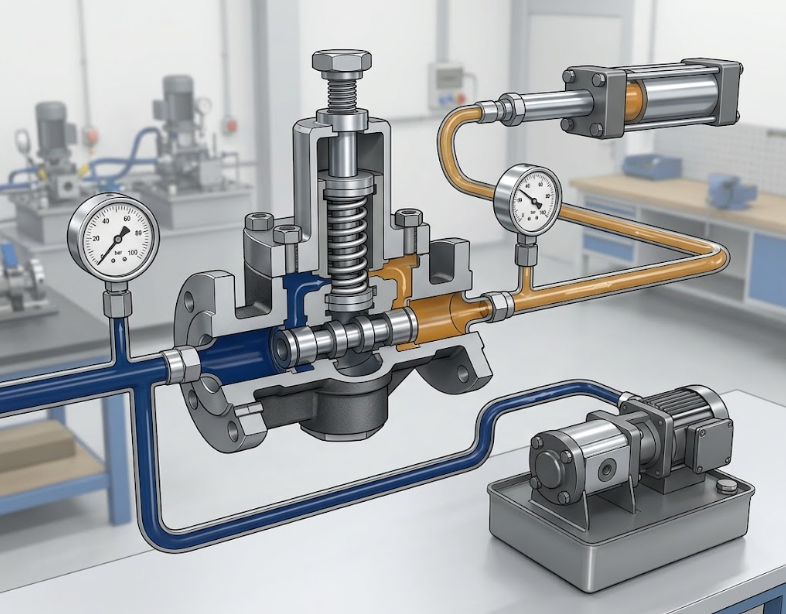

A pressure reducing valve senses pressure on its downstream side. Inside a typical direct-acting valve, a spring holds a spool or poppet in the open position.
The operating sequence is:
Fluid flows through the normally open valve to the secondary circuit.
Downstream pressure acts on the valve’s sensing area.
When downstream pressure approaches the spring setting, the spool begins moving against the spring.
The valve restricts the flow path from the high-pressure inlet.
This throttling action keeps the branch pressure near the selected setting even when upstream pressure rises.
The valve does not simply create a fixed pressure drop. It modulates according to the downstream pressure and flow demand.
Danfoss describes hydraulic pressure reducing valves as normally open devices that limit pressure in one part of a circuit while allowing inlet pressure to rise to full system pressure when necessary.
Hydraulic equipment frequently contains actuators with different force requirements. Cylinder force is broadly related to pressure and effective piston area:
Force = Pressure × Area
If a clamping cylinder received the same pressure as a larger lifting cylinder, it could apply excessive force, damage the workpiece or overload associated components. A hydraulic pressure reducing valve creates a controlled lower-pressure zone for that branch.
Typical applications include:
Clamping circuits
Hydraulic brakes
Steering circuits
Pilot-control lines
Machine-tool fixtures
Suspension systems
Motor shift mechanisms
Material-handling equipment
Agricultural and construction machinery
A reducing valve controls pressure, not actuator speed. Flow-control valves are generally used when the primary requirement is speed control.
| Feature | Direct-acting valve | Pilot-operated valve |
|---|---|---|
| Control method | Spring acts directly against spool or poppet | Pilot stage controls the main valve element |
| Response | Fast | Smoother but generally slower |
| Typical flow | Lower | Medium to high |
| Pressure stability | Suitable for simpler circuits | Better stability across changing flows |
| Construction | Relatively simple | More components and pilot passages |
| Common use | Brakes, pilot lines and small actuators | Large actuators and higher-flow circuits |
| Contamination sensitivity | Usually less complex | Small pilot passages require good fluid cleanliness |
Direct-acting designs are compact and economical. They can be a practical choice when flow demand is limited and rapid response is important.
Pilot-operated designs use a small pilot stage to control a larger main spool. This configuration can provide more precise and stable regulation when flow or inlet pressure changes significantly. The manufacturer’s pressure-flow curves should be reviewed rather than selecting a valve from nominal pressure alone.
These valves are often confused because both respond to pressure. Their functions and normal positions are different.
| Comparison | Pressure reducing valve | Pressure relief valve |
|---|---|---|
| Main purpose | Maintains lower pressure in a branch circuit | Limits maximum pressure in the main system |
| Pressure sensed | Usually downstream pressure | Usually upstream pressure |
| Normal position | Normally open | Normally closed |
| Action at setting | Restricts inlet flow | Opens a path to tank |
| Typical installation | In a secondary branch | Near the pump or protected pressure line |
| System role | Provides a controlled lower-pressure zone | Protects the system against excessive pressure |
A relief valve does not normally maintain a reduced working pressure in a branch circuit. Likewise, a basic reducing valve should not be treated as the main system overpressure-protection device.
Danfoss defines relief valves as pressure-limiting devices used to protect hydraulic systems and components.
A pressure reducing-relieving valve combines two functions. It reduces supply pressure under normal conditions and can discharge excess secondary pressure to tank if an external load drives the downstream pressure above the setting.
This matters in circuits where a cylinder, motor or suspended load may generate pressure from the downstream side. A non-relieving reducing valve can restrict incoming pressure, but it may not remove pressure created by an external force.
Parker’s technical literature describes a normally open reducing valve that throttles inlet flow when downstream pressure exceeds the spring setting. In a reducing-relieving design, continued pressure rise can move the control element farther and open the secondary circuit to tank.
Hydraulic oil, water, water-glycol and other fluids can require different body materials, seals, clearances and corrosion protection. Do not assume a valve designed for a water pipeline is suitable for an oil-hydraulic power unit.
State the maximum inlet pressure, normal inlet pressure and required downstream setting. The desired setting should fall comfortably within the valve’s adjustable range.
Check normal, minimum and maximum flow. A valve that is too small creates excessive pressure drop and heat. An oversized valve may regulate poorly at very low flow.
Pressure override is the increase or variation in controlled pressure as flow changes. Use the manufacturer’s performance curve to determine whether the valve can maintain acceptable downstream pressure across the operating range.
Determine whether external loads can raise secondary pressure. If they can, a reducing-relieving design or another safe pressure-release arrangement may be necessary.
Some valves require an external drain to tank. Pressure in the drain line can affect the regulated pressure and cause unstable operation. Follow the manufacturer’s port and drainage instructions.
Particles can obstruct pilot orifices, score spools and prevent reliable pressure control. Include the required filtration level and fluid-cleanliness target in the system specification.
| Symptom | Possible cause | Initial check |
|---|---|---|
| Downstream pressure is too high | Incorrect setting, blocked drain or damaged spool | Check adjustment, drain pressure and contamination |
| Pressure falls excessively under flow | Undersized valve or excessive pressure loss | Compare actual flow with the performance curve |
| Pressure fluctuates | Air, contamination or unstable pilot operation | Bleed the circuit and inspect fluid condition |
| Valve overheats | Continuous throttling with a large pressure drop | Review circuit efficiency and valve sizing |
| Actuator creeps | Internal leakage or another flow path | Isolate the branch and test leakage |
| Valve does not reduce pressure | Incorrect port connection or valve type | Verify the hydraulic symbol and port arrangement |
Hydraulic systems can store dangerous energy even after the pump stops. Troubleshooting, adjustment and disassembly should be performed only after the system has been safely isolated and depressurized.
In the broadest sense, hydraulics involves power or control through liquids. However, industrial buyers commonly use hydraulic valve to mean a valve for oil-hydraulic machinery, while water pressure reducing valves are designed for building services, municipal water, irrigation or fire-protection pipelines.
These products may use similar pressure-balancing principles, but they are not automatically interchangeable. Their fluids, seals, operating pressures, response requirements, port arrangements, materials and applicable standards can differ substantially.
KOXY’s current website presents a 200X pressure reducing valve within its water and pipeline valve range. It should therefore not be represented as an oil-hydraulic cartridge valve without separate product documentation confirming that use.
KOXY supplies valves, pipes, fittings and related equipment for water supply, fire protection, HVAC, municipal and industrial piping projects. Buyers can review KOXY’s industrial valve range and industrial piping applications.
When requesting a pressure reducing valve, state whether the system uses hydraulic oil, water or another fluid. The RFQ should also include:
Inlet and required outlet pressure
Minimum and maximum flow
Fluid and operating temperature
Valve size and connection
Direct-acting or pilot-operated preference
Reducing-only or reducing-relieving function
Required materials and seals
Installation orientation
Applicable standard
Test and inspection documents
KOXY can review water-pipeline valve requirements against its available range. Oil-hydraulic or specialized fluid-power applications require confirmation of the exact product design and technical documentation before quotation or approval.
Yes. Most conventional hydraulic pressure reducing valves are normally open, allowing flow until downstream pressure reaches the valve setting.
It is normally installed in the branch that requires lower pressure. The valve senses and controls pressure downstream of its outlet.
Its main purpose is pressure control, but it regulates pressure by restricting flow. That restriction creates pressure loss and may generate heat.
No. The main relief valve protects the overall hydraulic system from excessive pressure. A reducing valve controls pressure in a secondary branch.
Possible causes include external actuator loads, thermal expansion, leakage, a blocked drain or incorrect valve selection. A reducing-relieving valve may be required when secondary pressure can be generated downstream.
A hydraulic pressure reducing valve maintains a selected lower pressure in one section of a hydraulic circuit while higher pressure remains available elsewhere. It is normally open and begins throttling when downstream pressure reaches the set value.
Reliable selection requires more than matching thread size and maximum pressure. Buyers must check flow, fluid compatibility, pressure range, pressure override, drain arrangement, relief function, filtration and performance curves. For KOXY water-pipeline pressure reducing valves, submit the actual application and operating data so the product type and required documentation can be confirmed before purchase.
