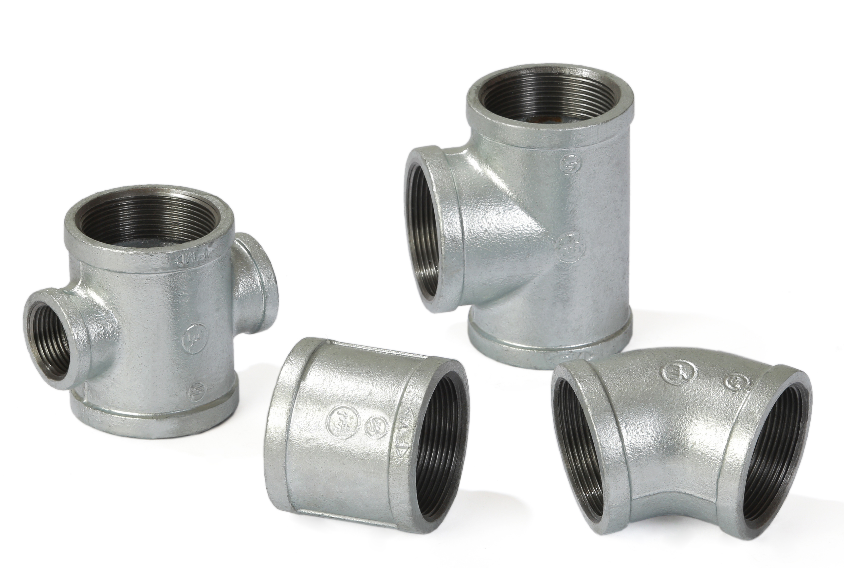

Malleable Iron vs Ductile Iron Pipe Fittings: How to Choose

When selecting pipe fittings for a project, one of the most common questions is whether to choose malleable iron or ductile iron fittings. While both materials serve similar purposes in pipe systems, they each have unique properties that make them more suitable for certain applications. Understanding these differences is key to choosing the right material for your specific needs.

What Is Malleable Iron?

Malleable iron is a type of cast iron that has undergone a heat treatment process to enhance its ductility. This process, known as malleabilization, allows the material to be more flexible and less brittle compared to traditional cast iron. Malleable iron fittings are commonly used in low- to medium-pressure applications and are particularly favored for threaded pipe systems.

Key Features of Malleable Iron:

• Cost-Effective: Malleable iron tends to be more affordable due to its simpler manufacturing process.

• Good Machinability: The material is easy to machine, making it ideal for threaded connections, which are commonly required in plumbing, gas lines, and other systems.

• Impact Resistance: While it is more cost-effective, malleable iron still provides good resistance to impact and vibration, making it suitable for many general-purpose applications.

What Is Ductile Iron?

Ductile iron, also known as nodular cast iron, is produced by adding small amounts of magnesium to molten iron. This results in a material that has enhanced strength, flexibility, and durability. Ductile iron is typically used for high-pressure applications or where fittings need to withstand heavy mechanical loads. It is also commonly used in larger diameter pipelines.

Key Features of Ductile Iron:

• Higher Strength: Ductile iron has significantly greater tensile strength than malleable iron, making it ideal for systems that require high durability and resistance to high-pressure conditions.

• Better Elongation: It has superior elongation properties, meaning it can stretch more before breaking, which is useful in environments subject to vibration or shifting.

• Corrosion Resistance: Ductile iron can be coated for additional corrosion resistance, making it a good choice for buried or underground piping systems.

Malleable Iron vs Ductile Iron: Key Differences

Choosing Between Malleable and Ductile Iron Fittings

When deciding between malleable iron and ductile iron, consider the following factors:

→ System Pressure:

• For low- to medium-pressure systems (e.g., plumbing, fire protection), malleable iron is often sufficient.

• For high-pressure or high-load systems (e.g., water mains, large-diameter pipelines), ductile iron is the better choice.

→ Pipe Size and Installation Method:

• Malleable iron is generally used for smaller diameter pipes, particularly when threaded connections are needed.

• Ductile iron is more suited for larger diameter pipes and is often paired with flanged connections.

→ Budget Considerations:

• Malleable iron tends to be the more economical option for projects with tight budgets or lower performance requirements.

• Ductile iron, though more expensive, may be worth the extra investment for projects requiring high durability or long-term performance under extreme conditions.

→ Environmental Factors:

• Ductile iron is more suitable for buried pipelines or systems exposed to harsh environmental conditions, such as extreme pressure or corrosive environments.

• Malleable iron is better suited for above-ground systems, smaller installations, and systems where corrosion resistance is less of a concern.




Conclusion

Both malleable iron and ductile iron have distinct advantages depending on the specific needs of your project. Malleable iron offers a cost-effective solution for general-purpose, low- to medium-pressure applications, while ductile iron excels in high-strength, high-pressure environments. The choice between the two materials depends largely on factors like system pressure, pipe size, budget, and environmental conditions.
